Tus Qauv Qauv |
B-JZH1600L |
|
Lem sij hawm |
Kwv yees li ntawm 45 hnub ua haujlwm tom qab tau txais cov ntaub ntawv thiab duab los qhia |
|
Cov ntsiab lus them nqi |
30% tt ua ntej ntau lawm, 70% tshuav nyiaj li cas ua ntej ua zaub mov xa tuaj |
Tshuab Specifications
Kev siv:
Lub tshuab yog tsuas yog siv rau kev tsim khoom thiab kev lag luam ntawm ntau cov thawv ntawv sab nraud thiab cartons. Xws li onclied kab kem, lub hau thiab thawv luj lub thawv, thiab lwm yam
Thiab yog tsim nyog rau cov zaub mov ntim, cov txiv hmab txiv ntoo thiab ntim khoom.
Kev Ua Tau Zoo:
1. Txawv teb chaws ntse cov kua nplaum uas tsis siv neeg nrog cov khoom siv kua nplaum;
2. Lub tshuab nqus nqus mus hom tshuab tuaj noj mov, thiab kev ua haujlwm txuas ntxiv ntawm kev pub mis, qhwv, folding, folding thiab molding ua tiav nyob rau ib lub sijhawm;
3. ZC cov tswj hwm, photoinectric tracking system, roj screen txiv neej-tshuab kev ua haujlwm, thiab kev siv cov txheej txheem automation tag nrho;
4. Cia li thawb cov duab los thov cov kua nplaum thiab nraub qaum, txo qhov ua yuam kev ntawm daim duab thaij duab rau daim duab qhia, yog li ntawd gluing yog qhov tseeb dua;
5. Infrared kev tiv thaiv kev nyab xeeb kev nyab xeeb kom muaj kev nyab xeeb ntawm cov neeg ua haujlwm ua haujlwm;
6. Tsis siv neeg ua txhaum kev kuaj mob;
7. Tsis siv neeg nrawm pwm hloov kev ua haujlwm;
8. Khib tawb tsim, ua kev sib xyaw ua ke, sib xyaw ua ke;
9. Cov hneev Me thiab Ruaj Ruaj.
Kev tsis muaj
|
Thickness ntawm duab los qhia |
1.5mm -7 hli |
|
Hwjchim |
380v / 50Hz |
|
Suab nrov |
Tsawg dua los yog sib npaug rau 100db |
|
Hov ceev |
20-30 (daim / min) |
|
Cardboard Pawg Qhov siab |
600mm |
|
Pawg hnyav |
50 kg |
|
Tag Nrho Fais Fab |
12kW (kev tsim khoom ntau lawm yog 5kW) |
|
Yub muaj peev xwm |
10 L |
|
Cua Taws Los |
50 l / feeb |
|
Tshuab qhov hnyav |
3000kg |
|
Qhov loj me (LXWXH) |
5015x1586x2100mm |
Ntim Lub Thawv Tshwj Xeeb
|

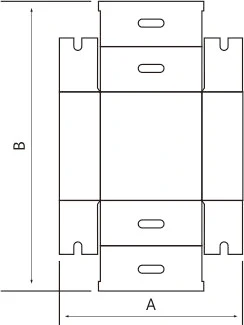

Ntim Qhov Coob |
A: min. qhov loj |
480mm |
|
A: Max. qhov loj |
1100mm |
|
|
B: min. Qhov loj |
480mm |
|
|
B: Max. qhov loj |
1300 hli |
|
|
Carton Loj |
L: Min. Qhov loj |
330 hli |
|
L: Max. qhov loj |
600mm |
|
|
W: min. Qhov loj |
240mm |
|
|
W: Max. qhov loj |
600mm |
|
|
H: Min. Qhov loj |
90 hli |
|
|
H: Max. qhov loj |
250 hli |
Lub thawv kuaj
Machin Main Qhov
Tsis Siv Neeg Pub SystemMolding System
Hloov Hloov SystemStacking System
Tswjhwm System Kub Melt Gluer System
Daim Ntawv Teev Teev
|
Lub npe |
Qauv & Cov Lus Qhia Tshwj Xeeb |
Hom |
Qho ntau |
Hais lus |
|
|
SERVO TSAV |
Ms -1 h} h {1}} c15cd-t331z |
Inovance |
Phiaj suav |
1 |
1.3kw |
|
Servo Tsav |
SV630AT5R4I |
Inovance |
Phiaj suav |
1 |
1.3kw |
|
SERVO TSAV |
Ms -1 h} h {1}} c15cd-t331z |
Inovance |
Phiaj suav |
1 |
1.8kW |
|
Servo Tsav |
SV630AT5R4I |
Inovance |
Phiaj suav |
2 |
1.8kW |
|
SERVO TSAV |
Ms -1 h 3-18 c15cd-t334z |
Inovance |
Phiaj suav |
1 |
1.8kW |
|
Zuag Taus Tus Neeg Sau |
MD200T1.5B |
Inovance |
Phiaj suav |
1 |
|
|
Tsim Reducer |
Ks57 |
Tus tsov rog |
Phiaj suav |
1 |
Piv 1: 11.92 |
|
Kev tig lub cev muaj zog |
6rk200go-UF |
Xa ntawv |
Phiaj suav |
1 |
{{0 {}. 37kw \ 1: 15 |
|
Lub tshuab nqus tsev |
KRF25A |
Phiaj suav |
1 |
||
|
Tawm Chav Tsev Slide |
Sky40 |
Hiwin |
Taiwan, Suav |
||
|
Cov Photoselectric Hloov |
E3jk-rr 12- c |
Ntawv TEB |
Nyiaj txiag |
3 |
|
|
Qhov sib thooj |
E2E-X3D1-D |
Authavs |
Teb chaws |
2 |
|
|
Suab tsa suab |
Zmc 304-1 |
Zmotion |
Phiaj suav |
1 |
|
|
Qauv Expansion |
Zio 1616 |
Zmotion |
Phiaj suav |
1 |
|
|
Relay |
Rxm2lb2bd |
Schneider |
Fabkis |
3 |
|
|
Rab phom |
Zhengtai |
Phiaj suav |
|||
|
Kov npo |
FE6100CE |
Phiaj suav |
1 |
||
|
Roj Roj Kho |
Aw 40-02 |
Tshav dav hlau airtac |
Taiwan, Suav |
1 |
|
|
Electromagnetic Valve |
Sy 7120-5 d -02 |
Tshav dav hlau airtac |
Taiwan, Suav |
2 |
|
|
Cua Lub Tog Raj Kheej |
CQ2D 32-75 |
Tshav dav hlau airtac |
Taiwan, Suav |
1 |
|
|
Pob Ntsia Hlau |
Sfu2504 |
Airtac / hiwin |
Taiwan, Suav |
||
|
Qhia Taw Qhia |
LSH15, LSH25 |
Tshav dav hlau airtac |
Taiwan, Suav |
||
|
Kub Melt Tshuab |
NC8 |
Valco Melton |
Usa |
1 |
8.Fter kev pabcuam:
A. Pub dawb kev pabcuam: Ib xyoos warranty. Qhov uas tau tawg vim tias yog qhov zoo yog pub dawb thaum lub sijhawm lav. (Tsis suav nrog cov kev siv tshuab mus ncig thiab nyiaj hli)
B. Kev Pab Cuam: Cov nqi yuav raug them nqi tom qab lub sijhawm pabcuam pub dawb.
C. Kev Pabcuam: Txij Nkawm ntawm qhov chaw.
D. Kev siv sijhawm ntev ntev ntawm cov khoom seem.
9.Cov Chaw Saib Xyuas Cov Vaj Tse(Npaj los ntawm tus neeg siv khoom):
(1) Khoom Siv Hluav Taws Xob: Peb-theem plaub-hlau Circuit Court; Voltage: 380v / 50Hz
(2) Cua cua: Min 5.5 kg / cm × 3 m³ / min
